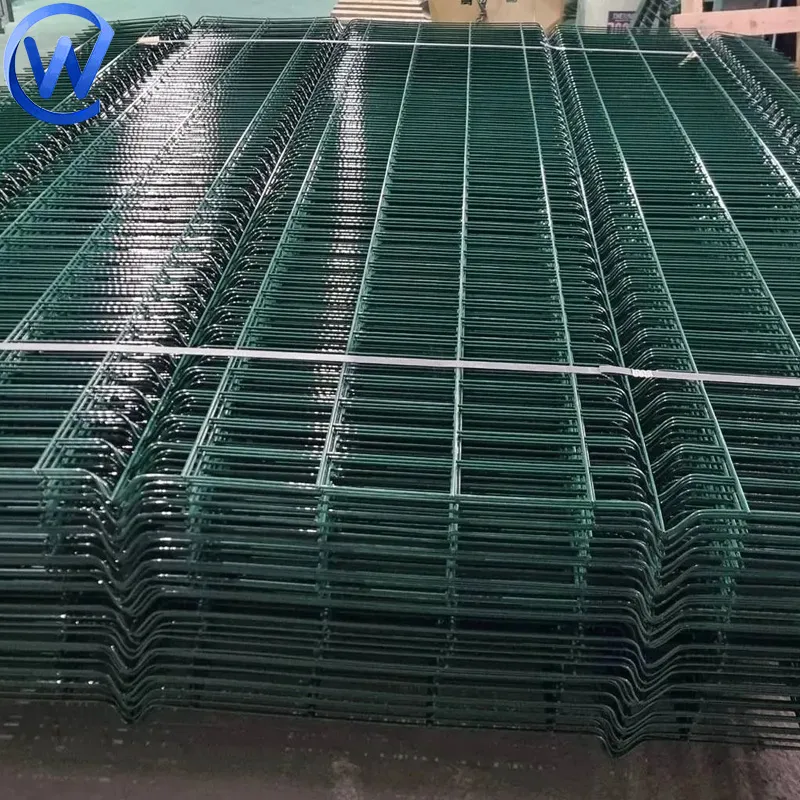

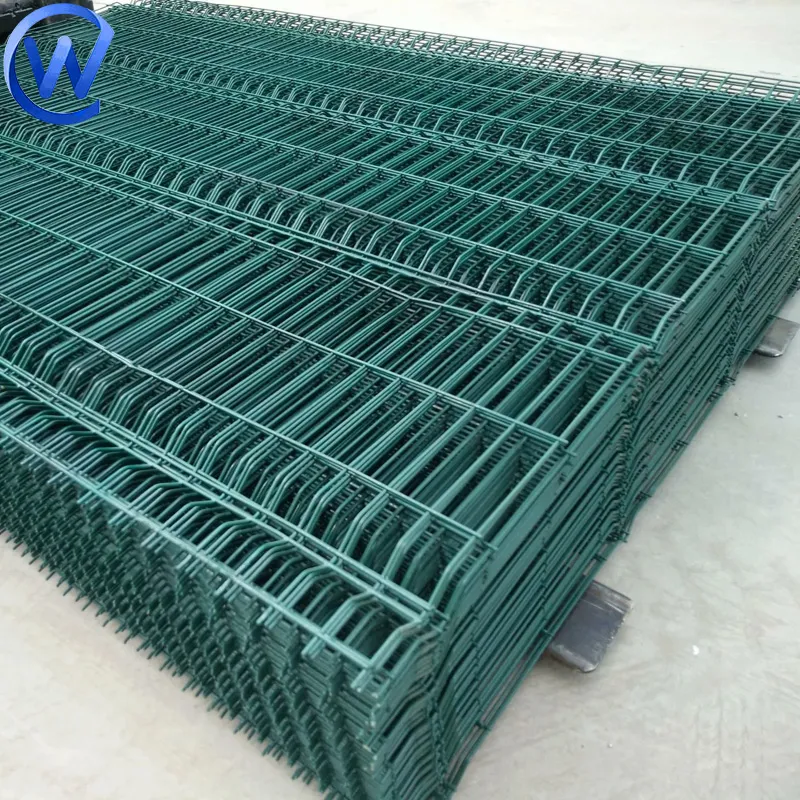

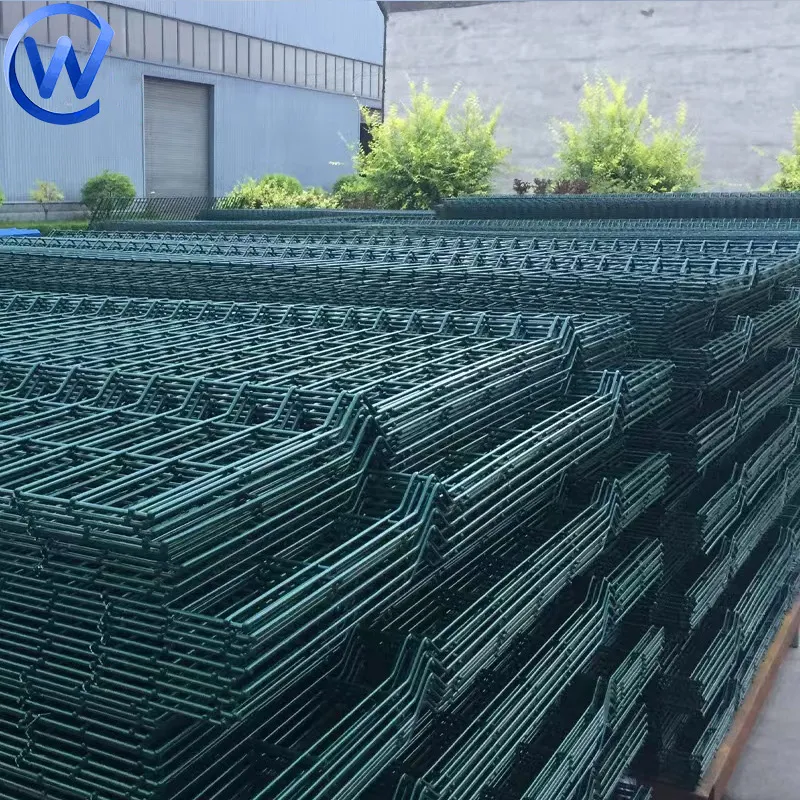

3D Curved Welded Wire Mesh Fence

Constructed from low carbon steel wire, our 3D Curved Welded Wire Mesh Fence is designed to withstand the test of time. The welded mesh design provides exceptional strength, making it resistant to bending and deformation. Whether you’re securing a residential property, commercial space, or industrial site, this fence offers the robust protection you need without compromising on aesthetics.

Ideal for a range of applications, from residential gardens to commercial properties and public spaces, this fence provides a secure boundary while enhancing the overall aesthetic of your environment.Mainly used for security protection in construction site, residential building, sports field, are house, highway or airport service area, railway station, etc.

Send email to us Download as PDF

Product Detail

Product Tags

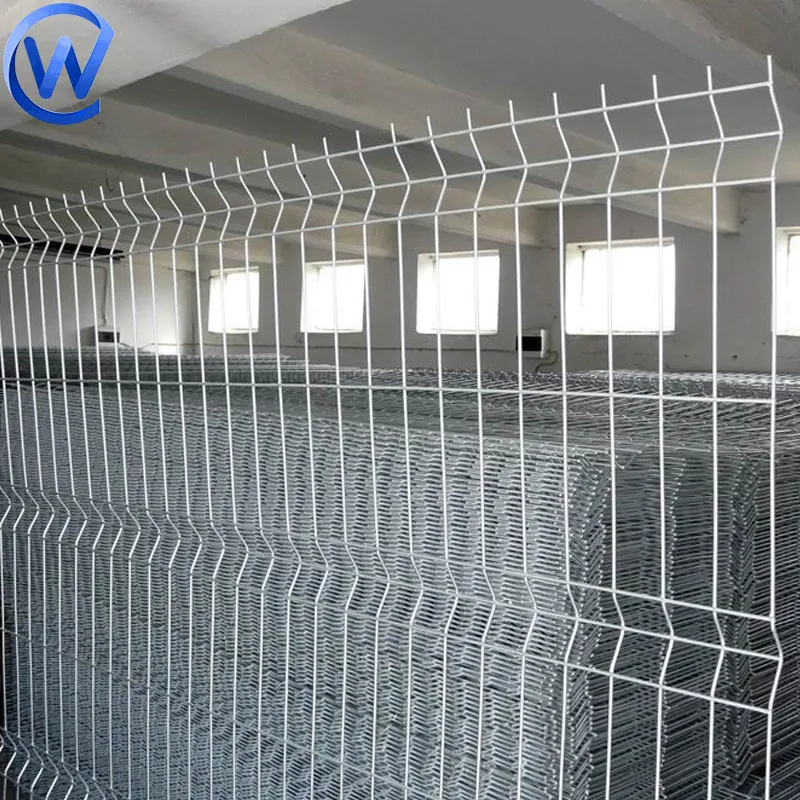

3D BENDING WIRE MESH FENCE

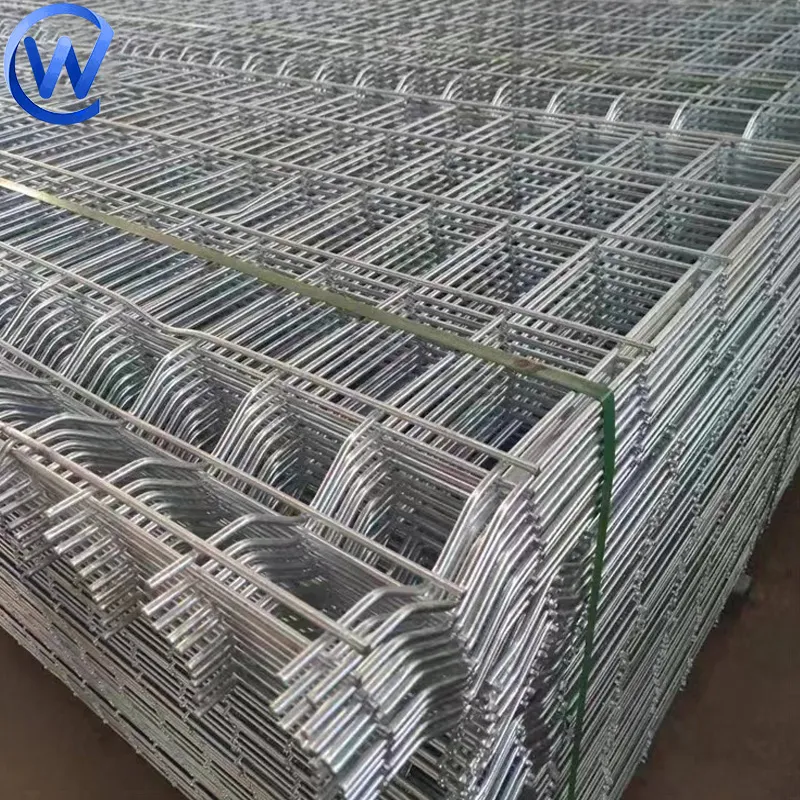

3D bending fence is also known as curved welded fencing, triangle mesh fence, etc. Triangle V bend fence is pretty light yet durable. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.

SPECIFICATION

Mesh Opening	50x100mm/50x150mm/50x200mm/55x200mm/75x150mm
Wire Diameter	3.0/3.5/4/4.5/5.0mm
Panel Height	0.6m-3.0m ( Suggest size : 2m/2.4m/3m )
Panel Width	2.0m-3.0m ( Suggest size : 2m/2.5m/2.9m )
Post Type	Round Post : 48x1.5/2.0mm 60x1.5/2.0mm
	Square Post(SHS) : 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm
	Rectangular Post(RHS) : 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm

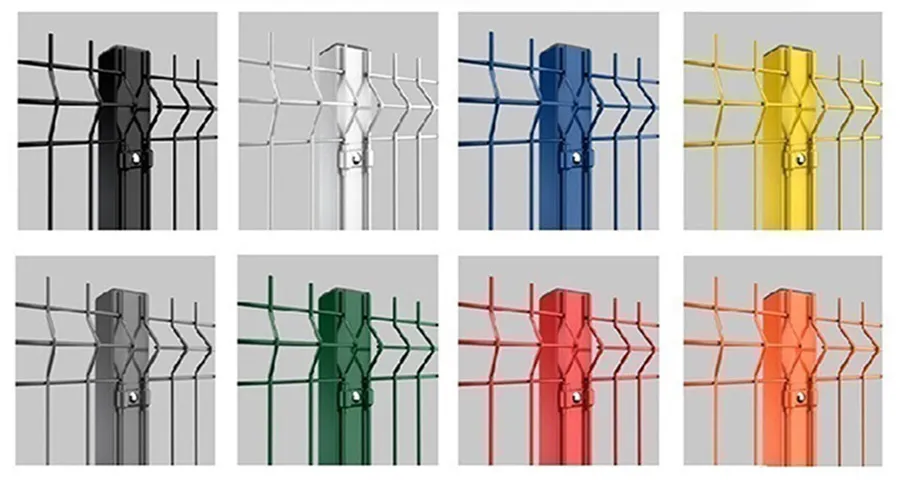

Color	green, gray, black, white, All color can be customized
Surface Treatment	hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Note:The fence can be customized according to your required if above specification is not satisfied with you
