Barbed Wire/Razor Barbed Wire

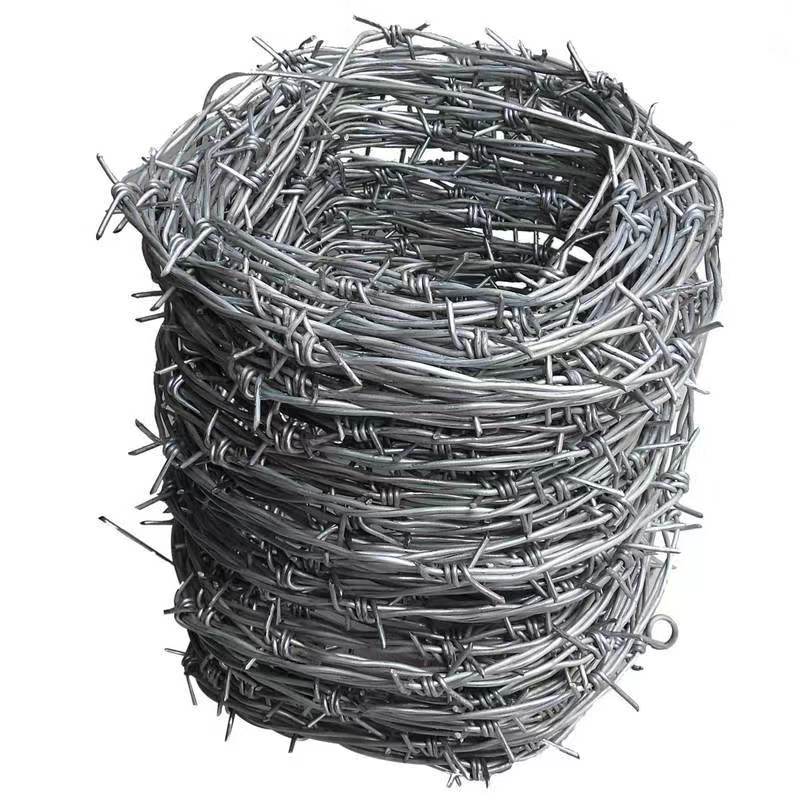

Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.We supply galvanized barbed iron wire in IOWA type, with 2 strands, 4 points.Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).
|
Barbed Wire |
||||
|
Type |
Wire Gauge (SWG) |
Barb Distance (cm) |
Barb Length (cm) |
|
|
Electric Galvanized Barbed Wire; Hot-dip galvanized barbed wire |
10# x 12# |
7.5-15 |
1.5-3 |
|
|
12# x 12# |
||||
|
12# x 14# |
||||
|
14# x 14# |
||||
|
14# x 16# |
||||
|
16# x 16# |
||||
|
16# x 18# |
||||
|
PVC coated barbed wire; PE barbed wire |
before coating |
after coating |
7.5-15 |
1.5-3 |
|
1.0mm-3.5mm |
1.4mm-4.0mm |
|||
|
BWG11#-20# |
BWG8#-17# |
|||
|
SWG11#-20# |
SWG8#-17# |
|||
|
|
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
|
|
|

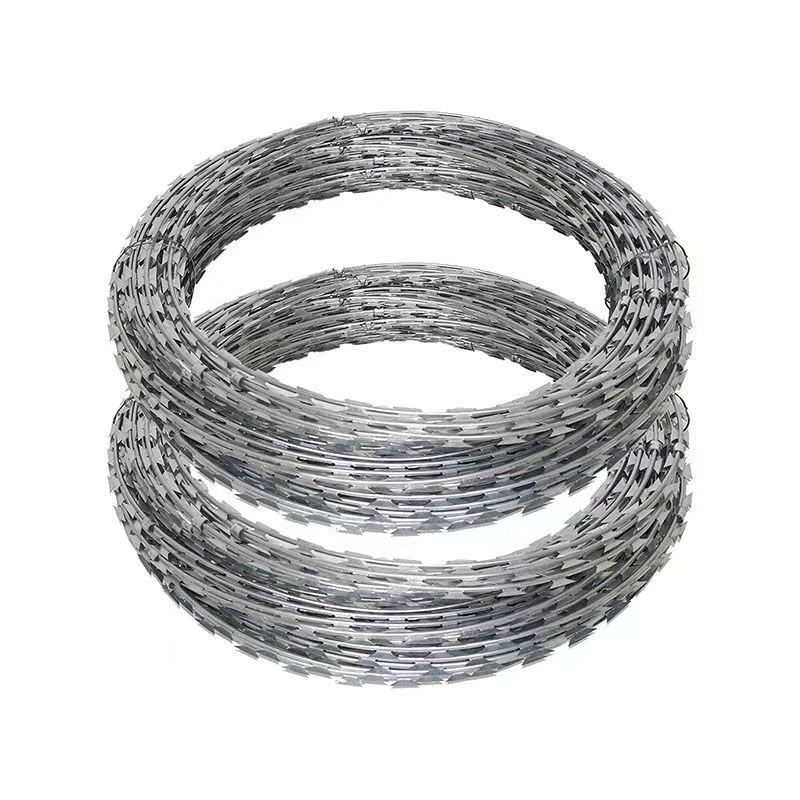

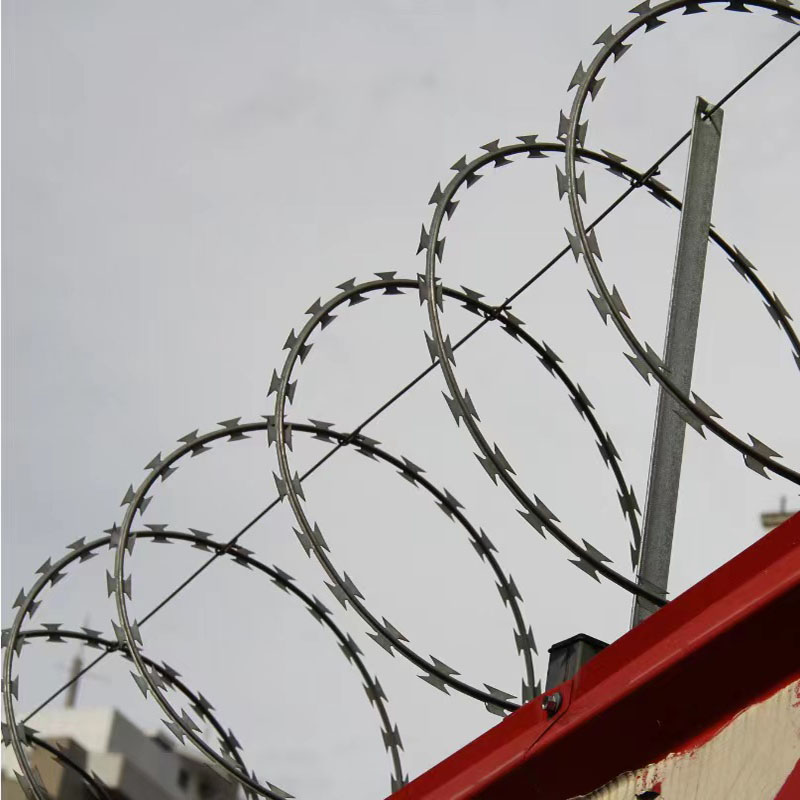

Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Razor size and coil size are listed as follows.
|
Razor Barbed Wire |
||||||
|
Blade Specification |
Blade Forms |
Blade Thickness |
Core Wire Dia. |
Blade Length |
Blade Width |
Blade Space |
|
BTO-10 |
|
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
|
BTO-12 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
BTO-18 |
|
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
|
BTO-22 |
|
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
|
BTO-28 |
|
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
|
BTO-30 |
|
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
|
CBT-60 |
|
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
|
CBT-65 |
|
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
|
Ex. Dia. |
No. of Turns |
Standard Covering Length |
Production Model |
Remarks |
|
450mm |
33 |
8M |
CBT-65 |
Single coil |
|
500mm |
41 |
10M |
CBT-65 |
Single coil |
|
700mm |
41 |
10M |
CBT-65 |
Single coil |
|
960mm |
53 |
13M |
CBT-65 |
Single coil |
|
500mm |
102 |
16M |
BTO-12.18.22 |
Cross type |
|
600mm |
86 |
14M |
BTO-12.18.22 |
Cross type |
|
700mm |
72 |
12M |
BTO-12.18.22 |
Cross type |
|
800mm |
64 |
10M |
BTO-12.18.22 |
Cross type |
|
960mm |
52 |
9M |
BTO-12.18.22 |
Cross type |

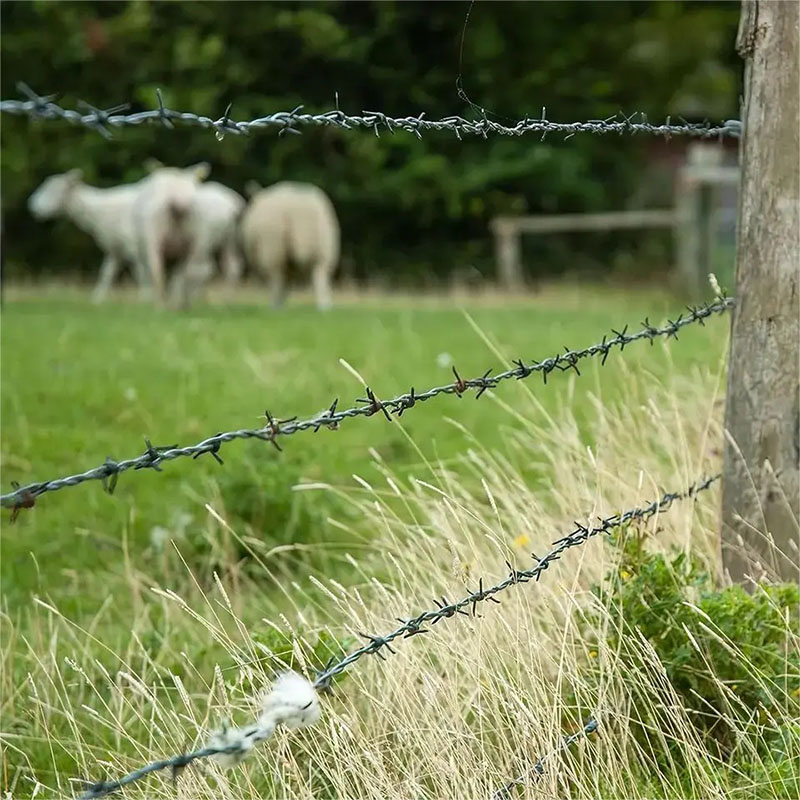

Barbed wire/razor barbed wire offered by us is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing,grass boundary, railway, highway isolation protection.
