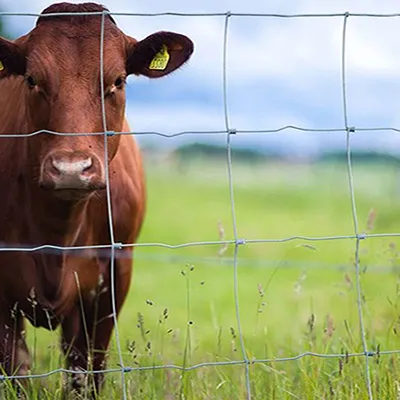

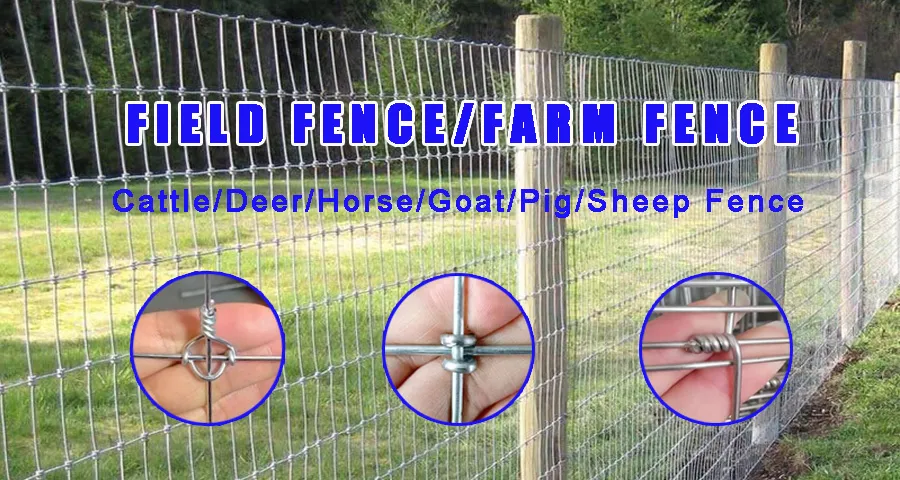

Field Fence/Farm Fence

Field fence also known as a woven wire fence, tends to be the best option for safeguarding Sheep, goats, pigs and poultry. It's also effective at containing cattle, deer and horses.

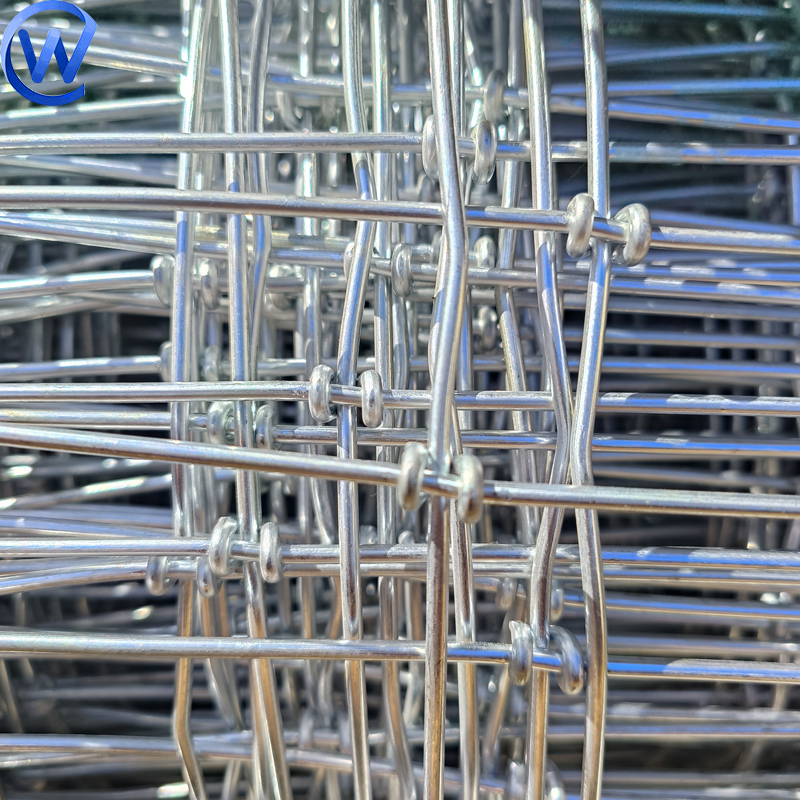

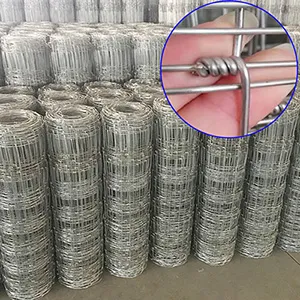

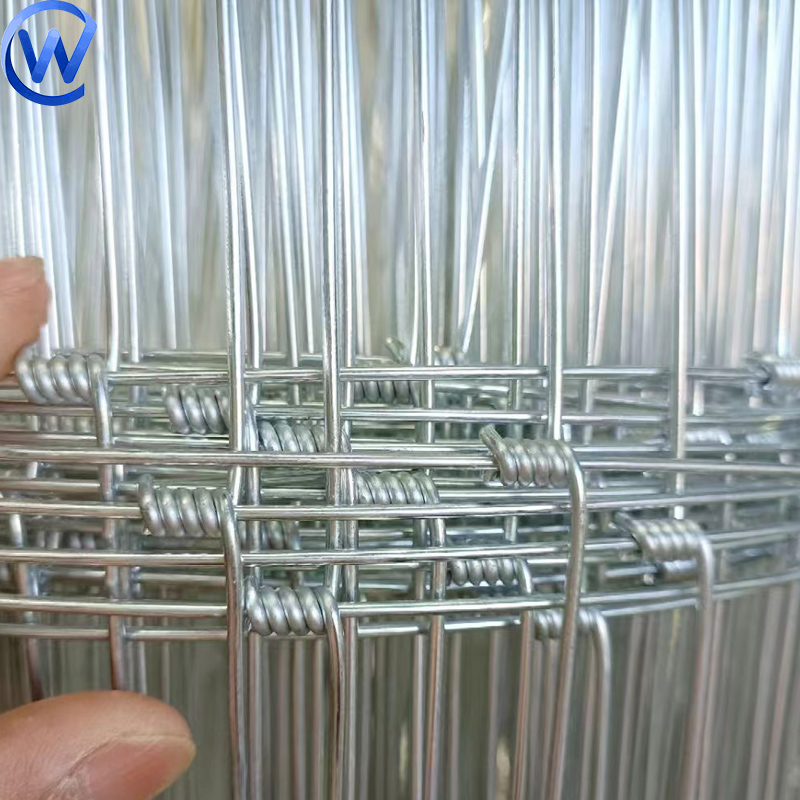

Hinge knot joint fence.Hinge joint Field fence has four wrap knots or joints formed with two vertical stay wires wrap together that give under pressure, then spring back into shape. This hinged knot provides a continuing protection, maximum strength and flexibility of the entire fence fabrics.Hinge joint fence is also called Hinge Knot Fence or Hinge Lock Fence.

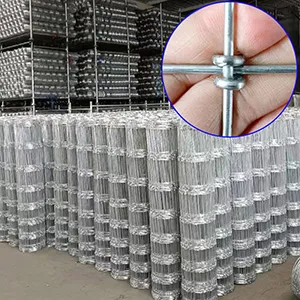

Fixed knot field fence. This type is reinforced at each wire intersection both horizontally and vertically. There's no risk of the horizontal wires sliding if animals try to climb the fence.

Field fence is popularly use in farms, pastures of USA, Canada, South Africa, Australia as field fencing materials.

Envíanos un correo electrónico Descargar como PDF

Detalle del producto

Etiquetas de productos

Read More About deer fence

Breve descripción

Material: Acero con bajo contenido de carbono, Acero de alta resistencia a la tracción, Alambre galvanizado

Clasificación:

I.Electric galvanized

II.Hot dipped galvanized

III. Galvanizado en caliente

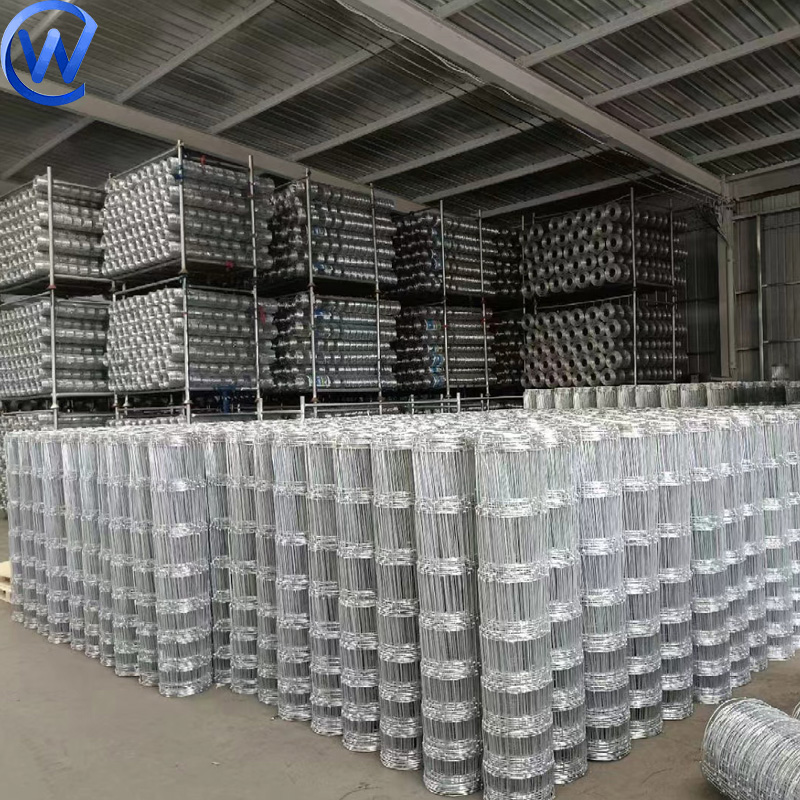

Embalaje: En rollo, cada rollo con bolsa tejida en las dos cabezas.

Especificación

Hinge Knot Joint Fence
Fixed Knot Field Fence
Square Deal Knot Fence

Common hinged joint fencing is made from galvanized wire with a wire diameter of 2.5 mm and the top and bottom wire are made with wire diameter of 2.8 mm. Fence height is normally from 0.8m to 2m. A variety of heights, hole mesh, spacing and styles are offered for more choices.

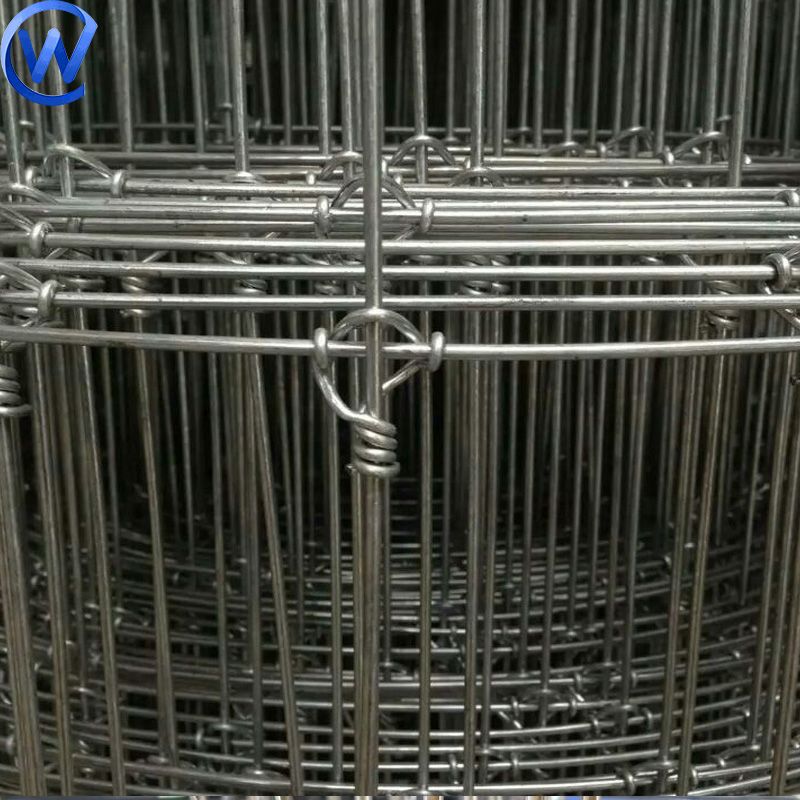

Fixed knot field fence is reinforced at each wire intersection both horizontally and vertically. There's no risk of the horizontal wires sliding if animals try to climb the fence.Fixed knot deer fence is the strongest fence type with increased post spacing, highest visibility and low maintenance-which takes advantage of fixed knots formed by using separate wires to tie the continuous horizontal and vertical wires together without sliding.

Square Deal Knot Field Fence(S Knots Fence) has s-shaped knots to form a tough & sturdy structure that stands up to impact from large animals without buckling or sagging. It is a type of anti climbing fence, suitable for goat, sheep and cattle keeping. It is not welded style, is woven type could keeping longer life.

CERCA PARA GANADO
Tamaños de malla		GW(kg)	Diámetro del alambre (mm)
7/150/813/50	102+114+127+140+152+178	19.3	2,0/2,5 mm
8/150/813/50	89(75)+89+102+114+127+140+152	20.8	2,0/2,5 mm
8/150/902/50	89+102+114+127+140+152+178	21.6	2,0/2,5 mm
8/150/1016/50	102+114+127+140+152+178+203	22.6	2,0/2,5 mm
8/150/1143/50	114+127+140+152+178+203+229	23.6	2,0/2,5 mm
9/150/991/50	89(75)+89+102+114+127+140+152+178	23.9	2,0/2,5 mm
7/150/1245/50	102+114+127+140+152+0178+203+229	26.0	2,0/2,5 mm
10/150/1194/50	89(75)+89+102+114+127+140+152+178+203	27.3	2,0/2,5 mm
10/150/1334/50	89+102+114+127+140+152+178+203+229	28.4	2,0/2,5 mm
11/150/1422/50	89(75)+89+102+114+127+140+152+178+203+229	30.8	2,0/2,5 mm

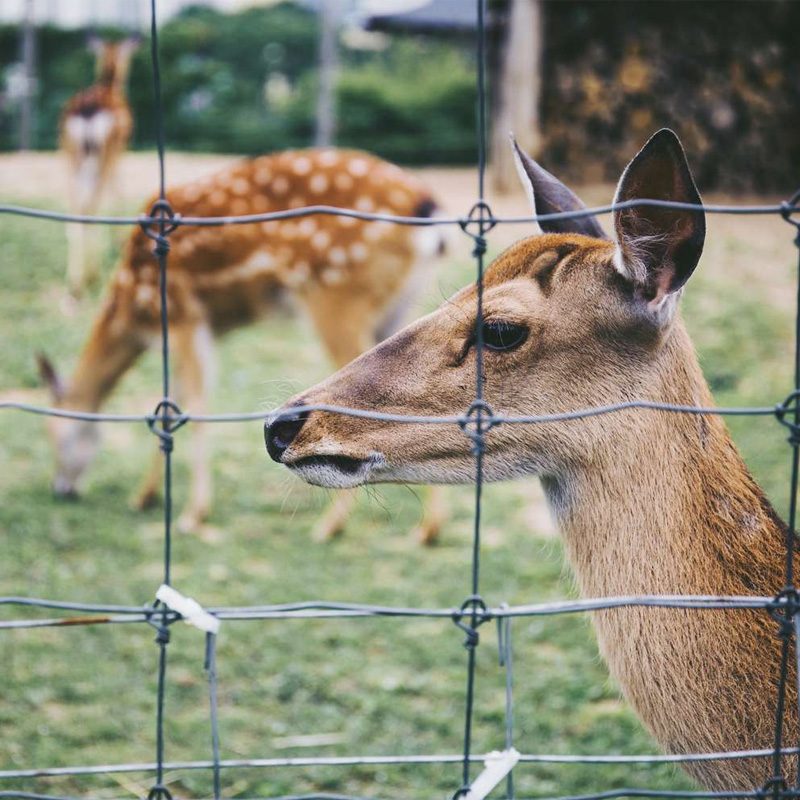

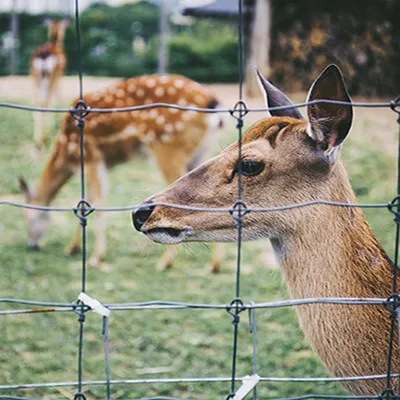

RED PARA CIERVOS
Distancia del cable vertical	3'',4'',5'',6'',7''
Ancho de malla	75 mm, 150 mm, 300 mm, 450 mm (3'', 6'', 12'', 18'')
Diámetro del cable	2,4 mm-2,6 mm
alambre de nudo	2,0 mm-2,24 mm
Ancho del rollo	Cualquier longitud ≤2,5 m
Longitud del rollo	50m, 100m, 200m

Solicitud

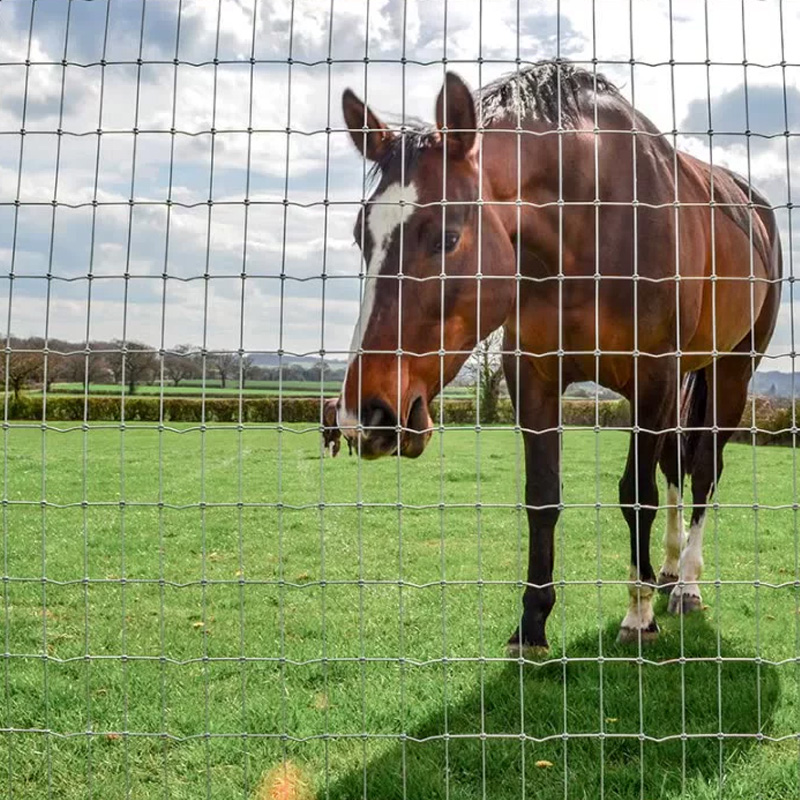

Farm fencing es la mejor opción de los ganaderos para proteger a los animales saltadores como ciervos, caballos y vacas, ovejas y cabras. El sistema de nudo de bisagra garantiza un estiramiento adecuado y permite una instalación más sencilla en terrenos montañosos o accidentados. Los usos de nuestros nudos de unión de bisagra permiten que la cerca ceda bajo presión y recupere su forma. El pesado recubrimiento de zinc del alambre ofrece a la cerca terminada una buena resistencia al óxido y a la corrosión.

Valla para ciervos con nudo fijo Es una instalación fácil de realizar. Ideal para todos los terrenos, así como para corrales y pastos, capaz de soportar las demandas de acorralar grandes rebaños de animales, el alambre galvanizado resiste la intemperie y el desgaste.
