Field Fence/Farm Fence

Field fence also known as a woven wire fence, tends to be the best option for safeguarding Sheep, goats, pigs and poultry. It's also effective at containing cattle, deer and horses.

Hinge knot joint fence.Hinge joint Field fence has four wrap knots or joints formed with two vertical stay wires wrap together that give under pressure, then spring back into shape. This hinged knot provides a continuing protection, maximum strength and flexibility of the entire fence fabrics.Hinge joint fence is also called Hinge Knot Fence or Hinge Lock Fence.

Fixed knot field fence. This type is reinforced at each wire intersection both horizontally and vertically. There's no risk of the horizontal wires sliding if animals try to climb the fence.

Field fence is popularly use in farms, pastures of USA, Canada, South Africa, Australia as field fencing materials.

Magpadala ng email sa amin I-download bilang PDF

Detalye ng Produkto

Mga Tag ng Produkto

Field Fence/Farm Fence

Maikling Paglalarawan

Materyal: Mababang carbon na bakal, High Tensile Steel, Galvanized Wire

Pag-uuri:

I.Electric galvanized

II.Hot dipped galvanized

III. High hot dipped galvanized

Packaging: sa roll, bawat roll ay may habi bag sa dalawang ulo

Pagtutukoy

Hinge Knot Joint Fence
Fixed Knot Field Fence
Square Deal Knot Fence

Common hinged joint fencing is made from galvanized wire with a wire diameter of 2.5 mm and the top and bottom wire are made with wire diameter of 2.8 mm. Fence height is normally from 0.8m to 2m. A variety of heights, hole mesh, spacing and styles are offered for more choices.

Fixed knot field fence is reinforced at each wire intersection both horizontally and vertically. There's no risk of the horizontal wires sliding if animals try to climb the fence.Fixed knot deer fence is the strongest fence type with increased post spacing, highest visibility and low maintenance-which takes advantage of fixed knots formed by using separate wires to tie the continuous horizontal and vertical wires together without sliding.

Square Deal Knot Field Fence(S Knots Fence) has s-shaped knots to form a tough & sturdy structure that stands up to impact from large animals without buckling or sagging. It is a type of anti climbing fence, suitable for goat, sheep and cattle keeping. It is not welded style, is woven type could keeping longer life.

BAkod ng baka
Mga sukat ng mesh		GW(KG)	Wire diameter(mm)
7/150/813/50	102+114+127+140+152+178	19.3	2.0/2.5mm
8/150/813/50	89(75)+89+102+114+127+140+152	20.8	2.0/2.5mm
8/150/902/50	89+102+114+127+140+152+178	21.6	2.0/2.5mm
8/150/1016/50	102+114+127+140+152+178+203	22.6	2.0/2.5mm
8/150/1143/50	114+127+140+152+178+203+229	23.6	2.0/2.5mm
9/150/991/50	89(75)+89+102+114+127+140+152+178	23.9	2.0/2.5mm
7/150/1245/50	102+114+127+140+152+0178+203+229	26.0	2.0/2.5mm
10/150/1194/50	89(75)+89+102+114+127+140+152+178+203	27.3	2.0/2.5mm
10/150/1334/50	89+102+114+127+140+152+178+203+229	28.4	2.0/2.5mm
11/150/1422/50	89(75)+89+102+114+127+140+152+178+203+229	30.8	2.0/2.5mm

DEER NET
Vertical wire na distansya	3'',4'',5'',6'',7''
Lapad ng mesh	75mm, 150mm, 300mm, 450mm(3'' ,6'', 12'', 18'')
Wire diameter	2.4mm-2.6mm
Knot wire	2.0mm-2.24mm
Lapad ng roll	Anumang haba ≤2.5m
Haba ng roll	50m, 100m ,200m

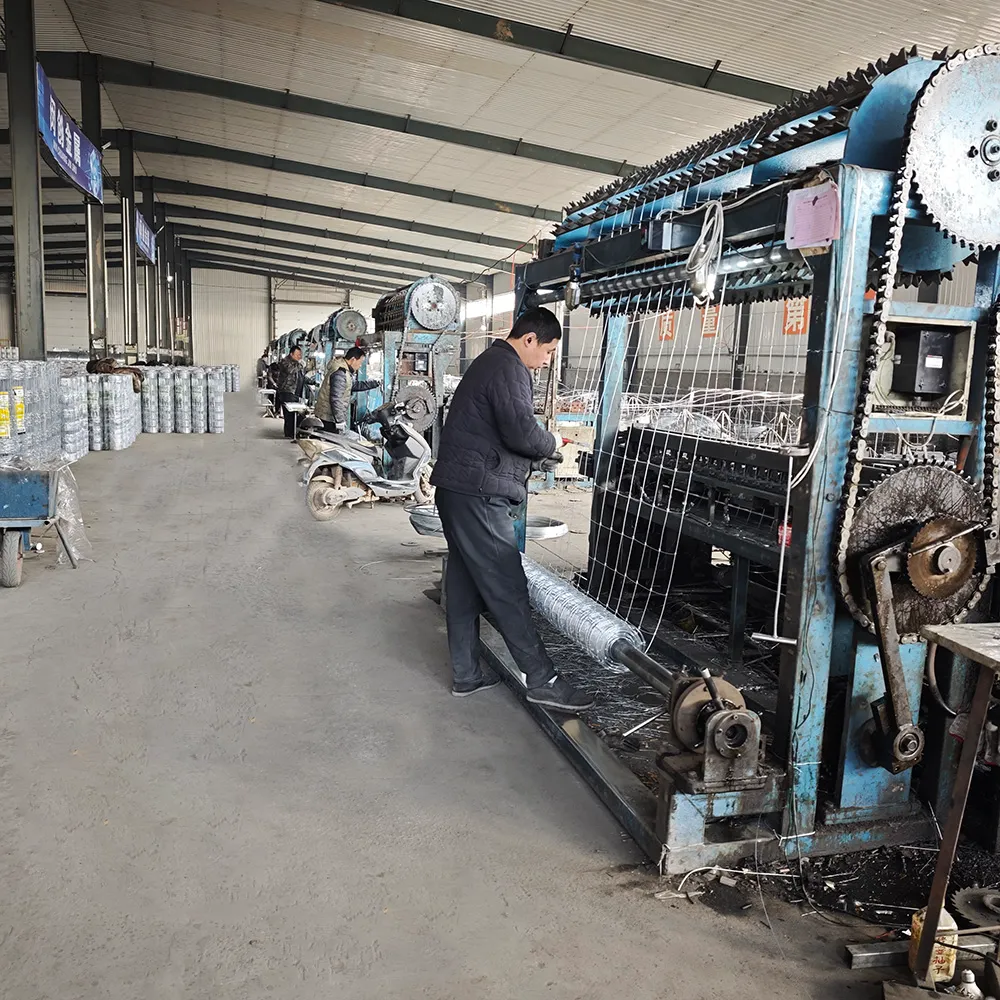

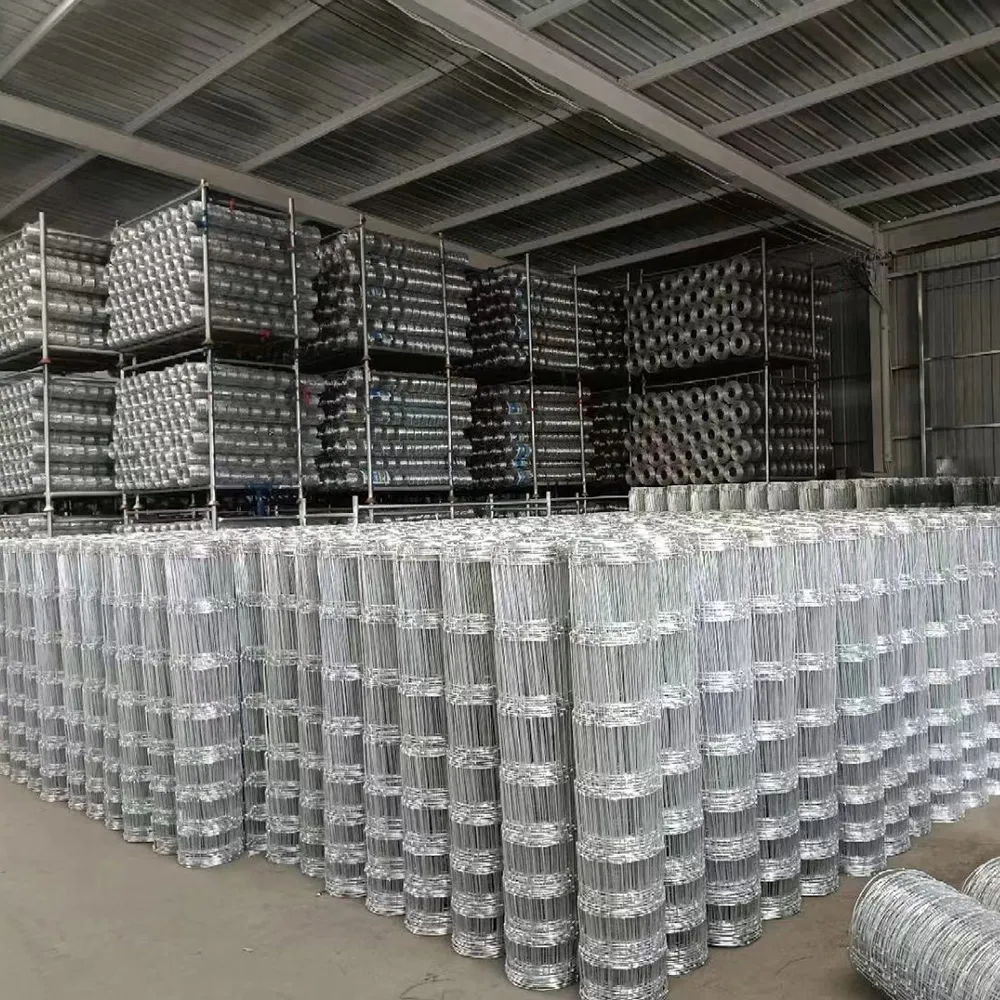

Our Factory

Aplikasyon

Farm fencing ay ang pinakamahusay na pagpipilian ng mga rancher para sa pagprotekta sa mga tumatalon na hayop tulad ng mga usa, kabayo at baka, tupa at kambing. Tinitiyak ng hinge-knot system ang tamang pag-uunat at nagbibigay-daan para sa mas madaling pag-install sa maburol o mabangis na lupain. Ang paggamit ng aming hinge-joint knots ay nagbibigay-daan sa bakod na magbigay sa ilalim ng presyon at bumalik sa hugis. Ang mabigat na zinc coating ng wire ay nag-aalok ng tapos na fencing na mahusay na lumalaban sa kalawang at kaagnasan.

Nakapirming buhol na bakod ng usa Madaling gawin ang pag-install. Tamang-tama para sa lahat ng mga lupain, pati na rin ang mga kural at pastulan, na makatiis sa mga hinihingi ng pagsasama-sama ng malalaking kawan ng hayop, ang galvanized wire ay lumalaban sa pagbabago ng panahon pati na rin ang pagkasira.
