Rib Lath

Rib metal lath is made of expanded metal for plasterworks. Commonly galvanized steel or stainless steel expanded metal. It offers firm structure and smooth surface. Rib lath is expanded metal lath stiffened with longitudinal ribs.

High rib lath has excellent engineering quality and construction security. It is widely used in construction reinforcement of tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern as concrete permanent assembly-free formwork lath.

Pošlete nám e-mail Stáhnout jako PDF

Detail produktu

Štítky produktu

Rib Lath

Advantages

No Formwork Removal: As the mesh stays in place, labor and time are saved by eliminating the need to remove traditional formwork.

Better Concrete Bonding: Perforations or mesh structure allow concrete to pass through and create a solid bond between the mesh and the concrete.

Lightweight and Easy to Install: Mesh is lighter than traditional formwork, making it easier to transport and install on-site.

Corrosion Resistance: Galvanized and stainless steel options provide durability and protection in corrosive environments.

Specifikace

Rib Lath is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength which offering excellent plaster base and reinforcement for all types of walls,ceilings,partitions and fireproofing of steel beam,and columns.Rib lath is ideal for proving a high degree key of mechanical bonding with render or plaster.

7 Rib 8 Opening
Thickness(mm)	Rib Distance(mm)	Weight (KG)	Width X Length(mm)
0.30	100	1.79	610 X 2440
0.35	100	2.09	610 X 2440
0.40	100	2.38	610 X 2440
0.45	100	2.68	610 X 2440
0.5	100	2.98	610 X 2440

5 Rib 8 Opening
Thickness(mm)	Rib Distance(mm)	Weight (KG)	Width X Length(mm)
0.30	150	1.31	610 X 2440
0.35	150	1.53	610 X 2440
0.40	150	1.75	610 X 2440
0.45	150	1.96	610 X 2440
0.5	150	2.17	610 X 2440

9 Rib 4 Opening
Thickness(mm)	Rib Distance(mm)	Weight (KG)	Width X length(mm)
0.30	75	1.89	610 X 2440
0.35	75	2.28	610 X 2440
0.40	75	2.53	610 X 2440
0.45	75	2.84	610 X 2440
0.5	75	3.15	610 X 2440

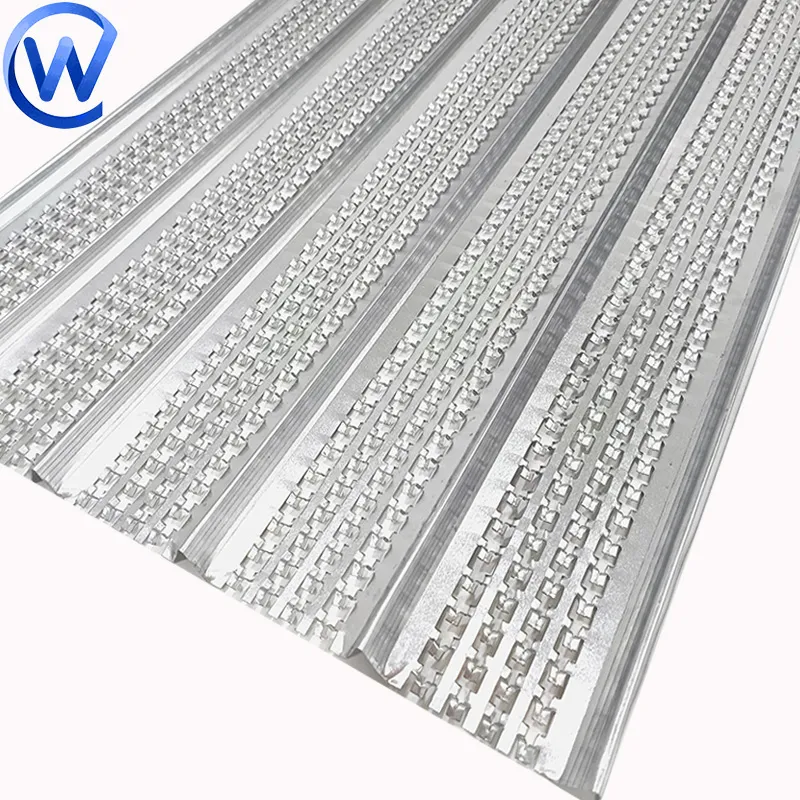

Hy-Rib is a steel encasement stiffened by rigid ribs used in reinforced walls, ceilings, and floors. The products are made from a single plate of steel.Hy-Rib products were designed to take on plaster and cement to eliminate layout forms in the construction of buildings. The steel sheet would be embedded with plaster or cement directly and would flow into the lath surface to attach itself to the steel and harden to secure the material into the steel.

Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance (mm)
0.21	1.7	450	2200	14-20	90
0.23	1.9	450	2200	14-20	90
0.3	2.48	450	2200	14-20	90
0.35	2.9	450	2200	14-20	90
0.4	3.3	450	2200	14-20	90
0.45	3.7	450	2200	14-20	90
0.5	4.1	450	2200	14-20	90

aplikace

Concrete Slabs: Used as formwork for pouring concrete slabs, providing reinforcement and stability.
Retaining Walls: Applied to support concrete in retaining walls, allowing for improved load distribution and durability.
Bridge Decks: Used in bridge construction to support the pouring of concrete decks, providing long-term reinforcement.
Foundation Walls: Supports concrete walls in building foundations, eliminating the need for traditional removable formwork.
Underground Structures: Ideal for tunnels and underground walls, where removing formwork would be difficult.
