Expanded Metal Mesh

Expanded Metal Mesh

Expanded metal mesh can be made from a wide range of materials, chiefly expanded steel mesh, aluminum expanded metal mesh, expanded stainless steel, expanded nickel and other metal , as steel reinforcement materials in petroleum, chemical industry and building decorations.

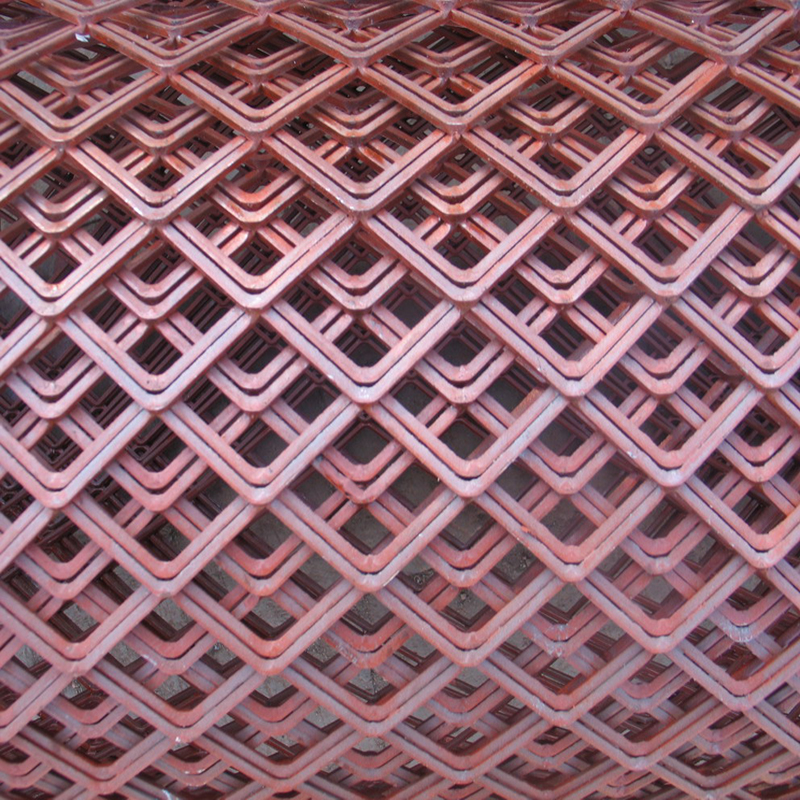

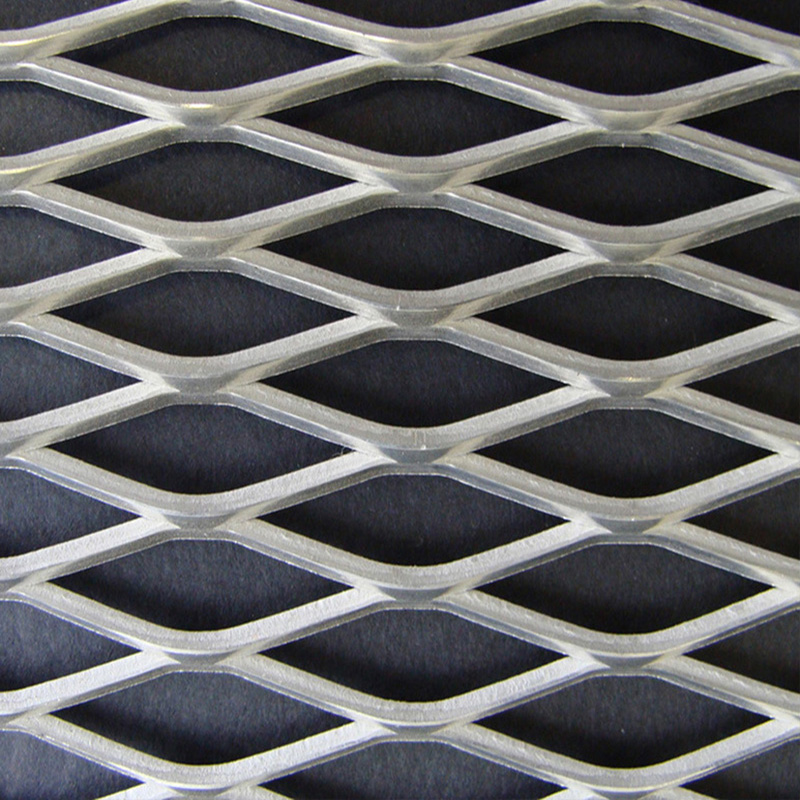

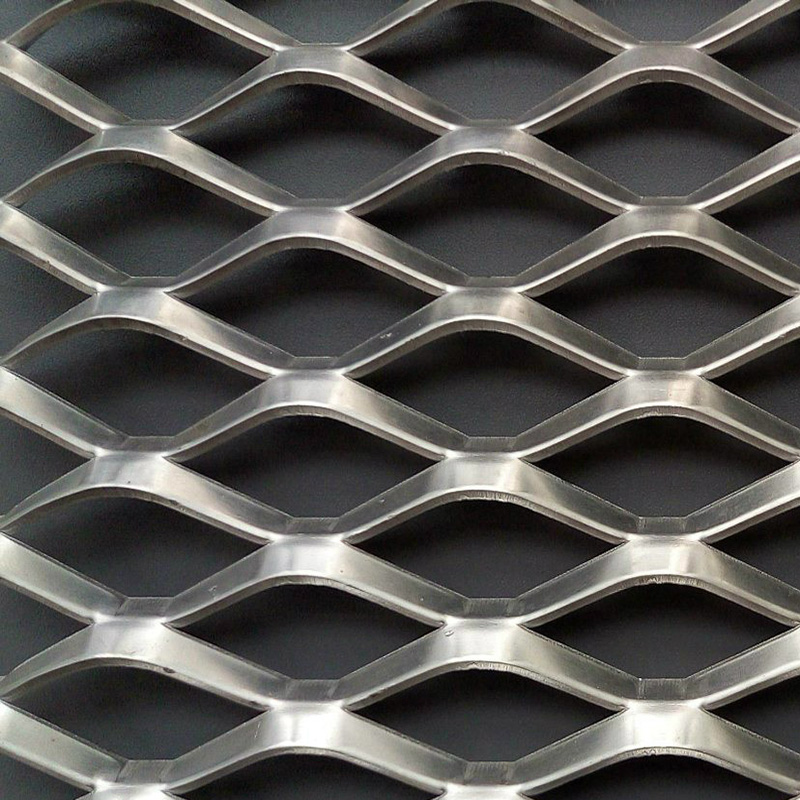

Conventional mesh is formed in a diamond pattern. It has other pattern of hexagonal, round, triangle, scale-like opening.Thickness available from 0.5mm to 8mm.





Download as PDF

Product Detail

Product Tags

Short Description



Material: Steel Plate, Galvanized steel Plate, Aluminum Plate, Stainless Steel Plate, Copper plate etc

Classification:Electric/Hot dipped galvanized expanded mesh;Copper plated expanded mesh;PVC coated expanded mesh;Aluminum expanded mesh.

Features:

CONTINUITY:Mesh is formed from a single whole pieceof metal

ENVIRONMENT FRIENDLY :There is no wast of material

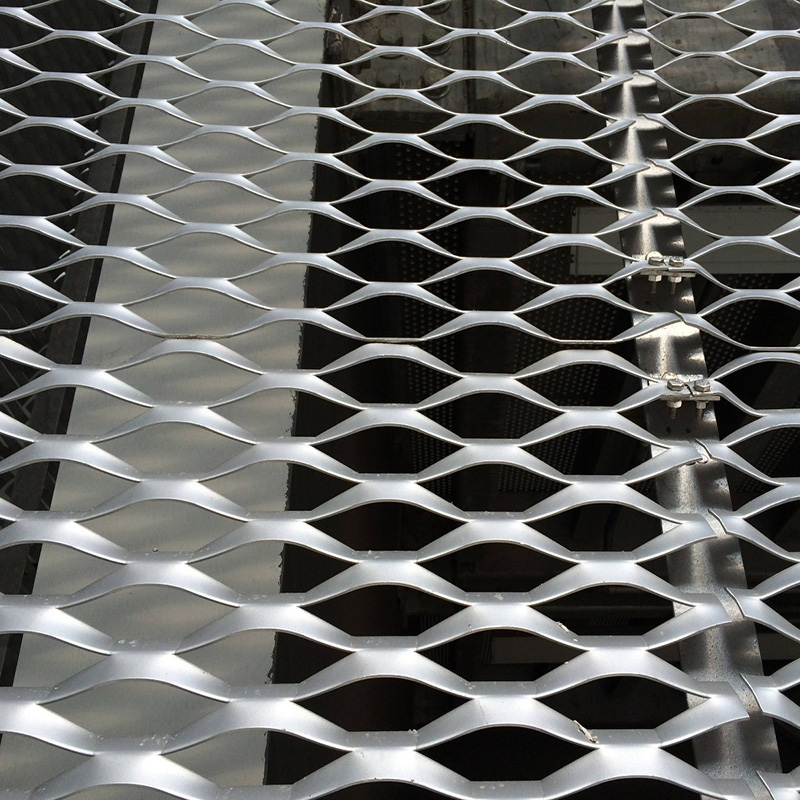

ANTI SLIP:Surface is raised and also ideal for walkways

CONVENIENT TO CUT:Unlike woven wire mesh, it won't unravel when cut



Specification



specifications

width
(m)

length
(m)

weight
(kg/m2)

mesh
thickness(mm)

distance
short(mm)

distance
long(mm)

strip(mm)

0.5

2.5

4.5

0.5

0.5

1

1.8

0.5

10

25

0.5

0.6

2

0.73

0.6

10

25

1

0.6

2

1

0.8

10

25

1

0.6

2

1.25

1

10

25

1.1

0.6

2

1.77

1

15

40

1.5

2

4

1.85

1.2

10

25

1.1

2

4

2.21

1.2

15

40

1.5

2

4

2.3

1.5

15

40

1.5

1.8

4

2.77

1.5

23

60

2.6

2

3.6

2.77

2

18

50

2.1

2

4

3.69

2

22

60

2.6

2

4

3.69

3

40

80

3.8

2

4

5.00

4

50

100

4

2

2

11.15

4.5

50

100

5

2

2.7

11.15

5

50

100

5

1.4

2.6

12.39

6

50

100

6

2

2.5

17.35

8

50

100

8

2

2.1

28.26



Application



Steel stretched mesh is a metal sheet mesh with uniform holes that is formed by stretching and expanding a metal sheet through equipment. It is collectively called metal stretched mesh. Due to the different hole shapes, it is also called: diamond stretched mesh, hexagonal stretched mesh, Also known as: stainless steel stretched wire mesh, low carbon steel stretched wire mesh, aluminum plate stretched wire mesh, etc.

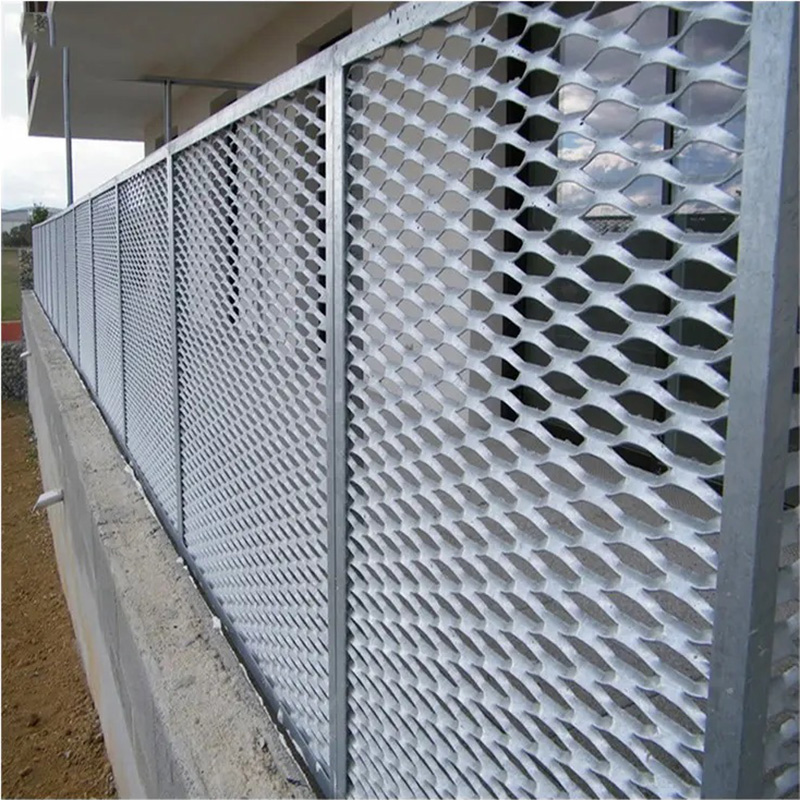

Uses of Expanded Metal Mesh: Fencing for road, railway, civil building, water conservancy's construction; protecting of all kinds of machines, electrical equipment, window and aquatic product's breeding.
