Steel Grating

Steel Grating has two surface type: serrated surface and smooth surface. Serrated steel grating is made of serrated steel bars, which can be low carbon steel bars, aluminum steel bars and stainless steel bars. The serrated steel bars are welded, press-locked, swage-locked or connected by rivets to form different types of steel grating.

Send email to us Download as PDF

Product Detail

Product Tags

Short Description

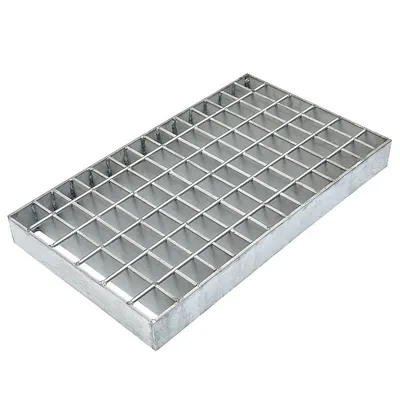

Plain Type Steel Grating

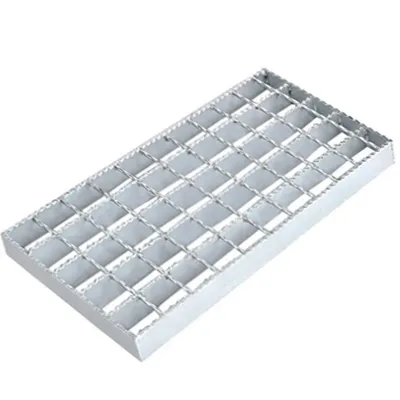

Serrated Type Steel Grating

Plain Steel Grating, also called smooth surface grating, is a type of grating made of plain steel bars. The smooth surface contrast with serrated steel grating, which has a serrated surface. Plain Steel Grating is the most widely used grating type, which is used in almost all of the applications.

Plain Steel Grating can be made of carbon steel bar, aluminum steel bars and stainless steel bars. Cross bars of Plain Steel Grating can be crimped bars, which are known as riveted steel gratings, flat square bars which are the press-locked gratings. The round bars is welded to the bearing bar is welded steel grating and the bars are placed into the pre-holes on the bearing bars to form the swage locked grating.

Specification

Item	Steel Grating
Surface Treatment	Hot Dipped Galvanized, PVC Coated, Black, etc
Material	Q235 Low Carbon Steel, Stainless Steel SS304, A36, etc
Bearing bar	25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,75x10mm,etc
Bear bar pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm.1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
Cross bar pitch	38,50,76,100,101.6mm
Hot Selling Size	G 303/30/100 G 253/30/100 G 254/30/100 G 304/30/100 G 255/30/100 G 305/30/100 G 325/30/100
Steel grating standards	A) China: YB/T4001-1998 B) USA: ANSI/NAAMM (MBG531-88) C) UK: BS4592-1987 D) Australia: AS1657-1985 E) Japan: JJS

Features

Plain and uniform surface. It can supply the beauty to the grating, which is used in the parks, gardens and commercial buildings.
- Wide range of application. The Plain Steel Grating is the most widely used grating type, which can be used in almost all applications.
- Lightweight and economical. The aluminum Plain Steel Grating is lightweight and cost less than other material gratings.
- Low maintenance cost. It needs less maintenance and save cost of maintenance.

Application

- Plain Steel Grating has a wide range of applications, which is available for almost all of the common applications.

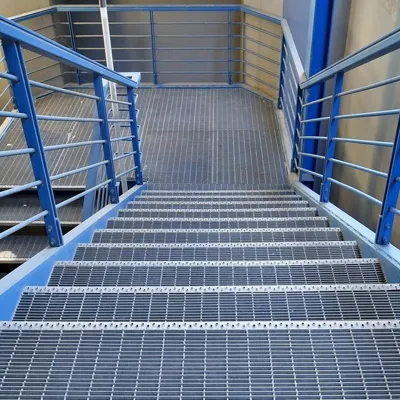

- It can be used as stair tread grating in commercial and industrial applications.

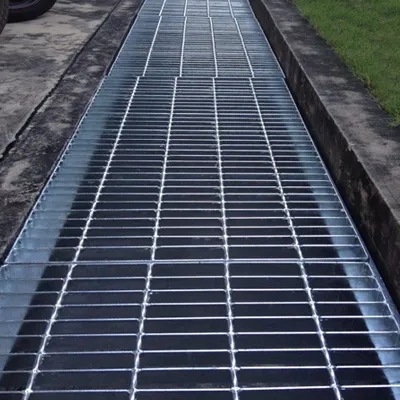

- Plain Steel Grating can be used in the municipal engineering as drainage trench covers to drain water and keep ground dry.

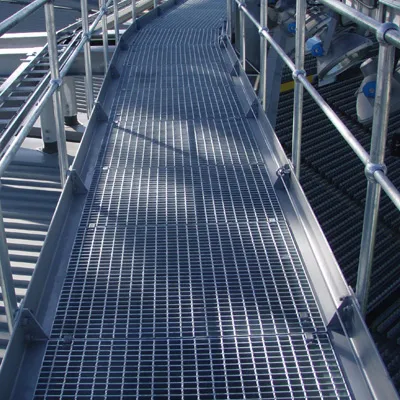

- Plain Steel Grating can be used in the port, parking lot, farmland and other places as platform walkway grating for pedestrian and vehicles access and passing.
